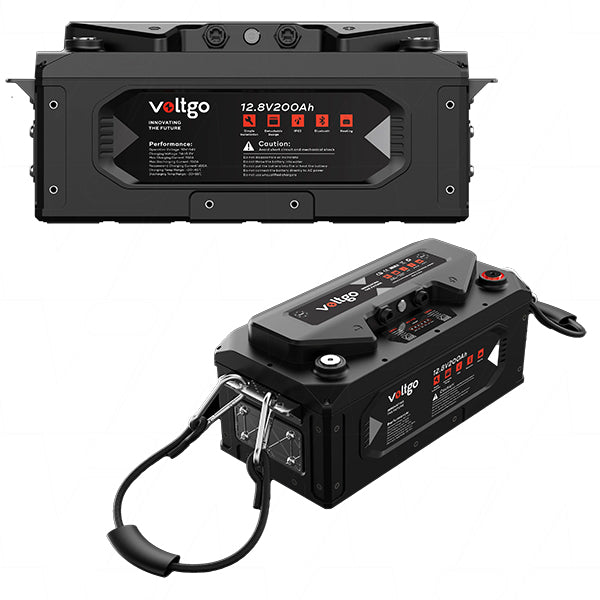

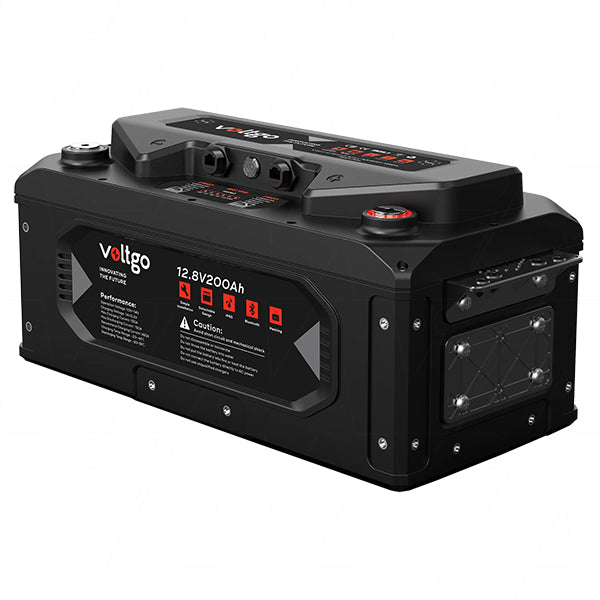

VoltGo 12.8V 200Ah 2560Wh LiFePO4 IP65/67 Rated Battery

VoltGoSKU: VLRV2560A

Price:
$1,799.95
Stock:
Low stock

Stock availability

Ships Today!
Ships within 2-3 Days! 0

Description

VoltGo 2.8V IP65/67 rated battery with Bluetooth

Sick of unreliable deep-cycle batteries that can’t handle moisture, cold, or demanding usage? The VoltGo VLRV2560A 2.8V LiFePO4 Battery is built to solve those challenges—offering extreme durability, smart system integration, and dependable performance in both stationary and mobile applications. Whether you're powering an off-grid setup, marine system, or 4x4 rig, this advanced module gives you peace of mind in any environment.

VoltGo VLRV2560A 2.8V LiFePO4 Battery

This IP65 and IP67-rated battery module features a flame-retardant ABS casing, making it perfect for use in harsh marine conditions or high-moisture areas. Its intelligent BMS offers comprehensive protection against short circuits, voltage extremes, and temperature fluctuations. An integrated aerosol fire suppression system adds a final line of defense, ensuring your system stays safe—even under fault conditions. Unique mounting plates are included to simplify installation and enhance structural stability.

Designed to be used on its own or scaled up to 16 units in parallel, the VoltGo VLRV2560A adapts effortlessly to your system size. When external power is connected, the built-in heating function keeps the battery between 0°C and 45°C for reliable operation in freezing conditions down to -20°C. With Bluetooth connectivity for real-time monitoring from your smart device, and RS485/CAN ports for integration with Victron GX devices, this VoltGo 2.8V IP65/67 rated battery with Bluetooth delivers performance, safety, and control—without compromise.

Selling Unit EACH
Model No VLRV2560A
Inventory Code 63001-002
Description 12.8V 200Ah 2560Wh LiFePO4 IP65 rated battery with Bluetooth/CAN/RS485 Output and scalability up to 40.96kWh systems
Application Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 12.8V
Watt Hour 2560.0Wh
Nominal Capacity 200Ah
Maximum Continuous Discharge Current 200A
Maximum Pulse Discharge Current 250A
Termination M8
Size 4S4P
Width 460mm
Height 212mm
Length / Breadth / Depth 220mm
Weight 25000g
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
12 Volt Series LiFePO4
VoltGo
Lithium Iron Phosphate Modules
Voltage (V) 12.8V
Capacity (Ah) 200Ah
Watt Hour (Wh) 2560Wh
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cycle Life >6000 cycles (0.5C@25°C, 80% DOD)
Max. continuous discharge current 200A
Max. PEAK discharge current 250A (30 seconds)
Discharge cut-off voltage 10V
Charge Voltage 14.0V - 14.4V
Max. continuous charge current 150A
Operating discharge temperature -20°C to +55°C
Operating charge temperature -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging)
Storage temperature -20°C to +45°C
Protections Short Circuit, Over Charge/Discharge, Over/Under Temperature
Ingress Rating IP65 rating
Series connection allowed* NO
Parallel connection allowed* YES - Up to 16P*
Case structure UL94 V-0 flame retardant serviceable ABS Case design
Compliances UL1973, UN38.3, IEC62619
Warranty 10 years

* No Series Connection Allowed

Technical Documents

VoltGo VLRV2560A Datasheet.pdf

VoltGo VLRV2560A Manual.pdf
