VoltGo 25.6V 100Ah 2560Wh LiFePO4 IP65/67 Rated Battery

VoltGoSKU: VLRV2560B

Price:
$1,799.95
Stock:
Low stock

Stock availability

Ships Today!
Ships within 2-3 Days! 0

Description

VoltGo 25.6V LiFePO4 IP65/67 Rated Battery

Struggling with bulky, high-maintenance batteries that can’t cope with moisture, cold, or heavy usage? The VoltGo 25.6V Battery VLRV2560B is purpose-built to overcome these common limitations—offering exceptional cycle life, superior safety, and powerful performance in marine, 4x4, caravan, and off-grid solar applications. Whether you’re after reliability, scalability, or long-term value, this lithium solution takes the stress out of energy storage.

VoltGo 25.6V Battery VLRV2560B

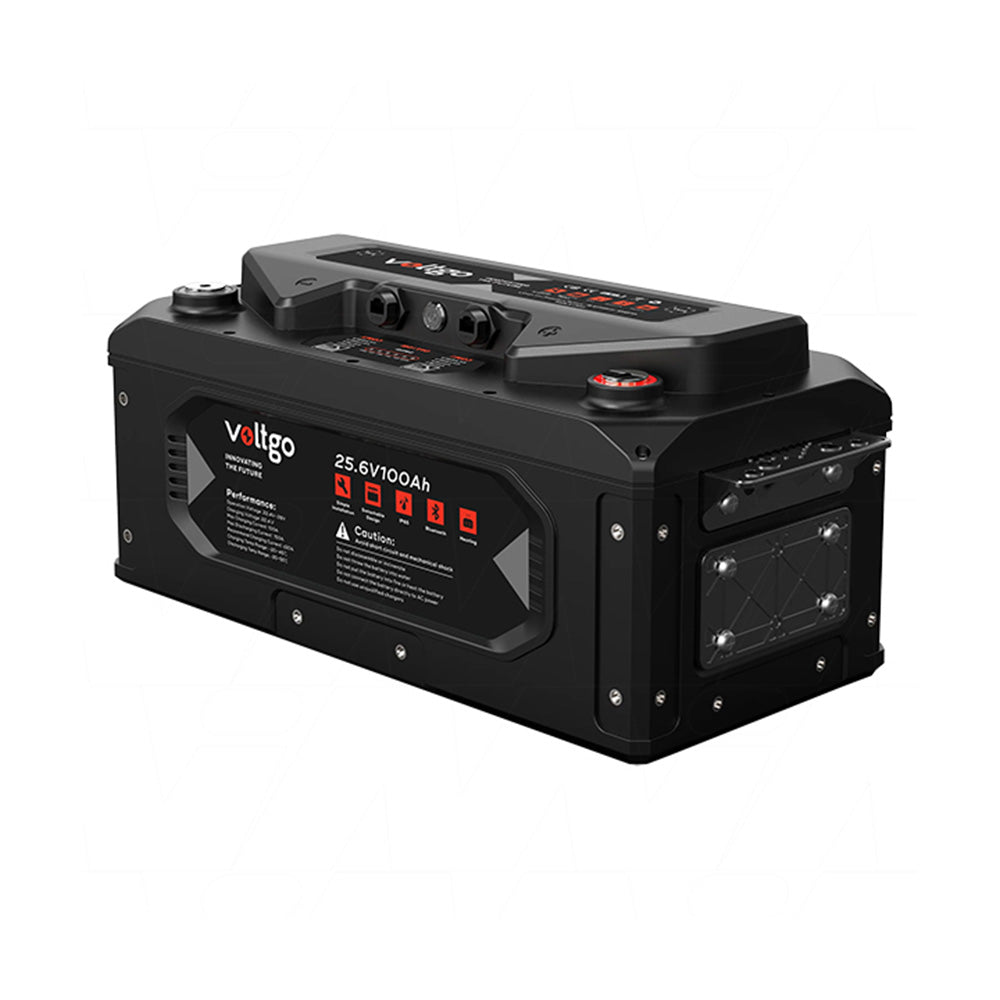

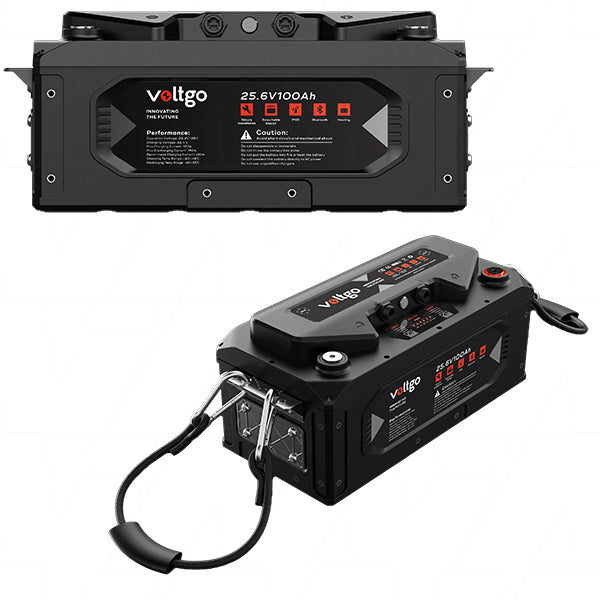

The VLRV2560B is a 25.6V 100Ah advanced Lithium Iron Phosphate (LiFePO4) battery housed in a rugged flame-retardant ABS enclosure with dual IP65/IP67 ratings. Perfect for high-moisture environments, this lightweight, maintenance-free alternative to lead acid batteries includes built-in mounting plates for flexible and secure installations. Its intelligent BMS provides comprehensive protections against short circuit, over/under voltage, and thermal fluctuations, while an integrated aerosol fire suppression system adds a final line of safety.

This VoltGo 25.6V LiFePO4 IP65/67 Rated Battery also includes Bluetooth connectivity for real-time battery monitoring through your smart device, as well as RS485/CAN communication for integration with Victron GX systems. When external power is applied and temperatures fall below zero, the built-in heating system activates to allow safe charging and discharging down to -20°C. Scalable up to 16 units in parallel, the VLRV2560B adapts to suit a wide range of energy storage needs—making it a reliable, future-proof solution for your next project.

Selling Unit EACH
Model No VLRV2560B
Inventory Code 63001-004
Description 25.6V 100Ah 2560Wh LiFePO4 IP65 rated battery with Bluetooth/CAN/RS485 Output and scalability up to 40.96kWh systems
Application Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 25.6V
Watt Hour 2560.0Wh
Nominal Capacity 100Ah
Maximum Continuous Discharge Current 150A
Termination M8
Size 8S2P
Width 460mm
Height 212mm
Length / Breadth / Depth 220mm
Weight 25000g
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
24 Volt Series LiFePO4
VoltGo
Lithium Iron Phosphate Modules
Voltage (V) 25.6V
Capacity (Ah) 100Ah
Watt Hour (Wh) 2560Wh
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cycle Life >6000 cycles (0.5C@25°C, 80% DOD)
Max. continuous discharge current 150A
Max. PEAK discharge current 200A (30 seconds)
Discharge cut-off voltage 20V
Charge Voltage 22.4V - 28V
Max. continuous charge current 100A
Operating discharge temperature -20°C to +55°C
Operating charge temperature -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging)
Storage temperature -20°C to +45°C
Protections Short Circuit, Over Charge/Discharge, Over/Under Temperature
Ingress Rating IP65 rating
Series connection allowed* NO
Parallel connection allowed* YES - Up to 16P*
Case structure UL94 V-0 flame retardant serviceable ABS Case design
Compliances UL1973, UN38.3, IEC62619
Warranty 10 years

* No Series Connection Allowed

Technical Documents

VoltGo VLRV2560B Manual.pdf

VoltGo VLRV2560B Datasheet.pdf
