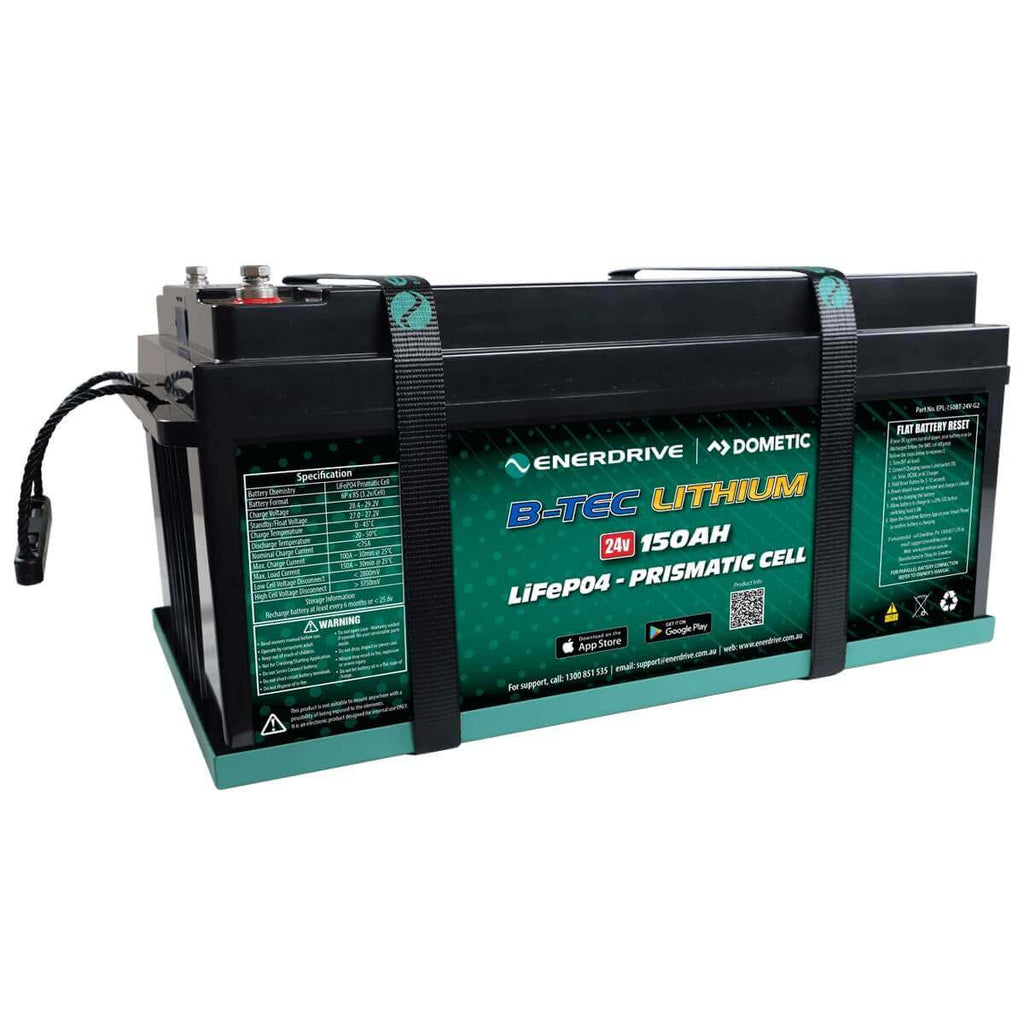

Enerdrive B-TEC 24V 150Ah Lithium Battery EPL-150BT-24V-G2

Running a 24V setup and need a powerful, dependable lithium battery with the latest tech? The Enerdrive EPL-150BT-24V-G2 delivers the performance you need with smart monitoring, a built-in reset button, and advanced battery management. Whether you’re powering a caravan, marine system, or remote equipment, this 150Ah lithium battery gives you more usable energy, greater safety, and real-time insights—all in a compact, lightweight unit designed for serious off-grid applications.

Enerdrive 24V 150Ah Battery: Built for High Demand and Smart Operation

The Enerdrive EPL-150BT-24V-G2 is part of Enerdrive’s advanced G2 B-TEC lithium battery range, designed specifically for 24V deep cycle applications. With integrated Bluetooth monitoring and a reliable internal Battery Management System (BMS), this battery offers high-performance energy storage for off-grid, marine, and mobile installations. Its slim profile and built-in reset button make it easy to manage and install in tight spaces, while the 5-year warranty gives you long-term peace of mind.

Enerdrive Lithium Battery EPL-150BT-24V-G2: Real-Time Battery Data at Your Fingertips

The G2 model is equipped with Bluetooth Smart Monitoring technology, allowing you to track performance directly from your Android™ or Apple® device. Monitor key metrics on the go:

• Battery Capacity, Voltage & Current (Amps)
• State of Charge (SOC) & State of Health (SOH)
• Battery Status & Individual Cell Voltages
• Battery Temperature & Charge Cycles
• Battery Alarms & Event Logs

The internal BMS protects the battery from overcharge, over-discharge, short circuits, and overheating while balancing each prismatic cell for safe and consistent operation. If the battery fully discharges and the BMS shuts down, simply press the built-in reset button to wake it up—no external voltage required.

Enerdrive 24V 150Ah EPL-150BT-24V-G2 vs AGM: Smarter Energy Storage

Compared to lead acid batteries, the EPL-150BT-24V-G2 delivers more usable power in a lighter, more compact form:

• 150Ah Lithium = significantly higher usable energy than AGM
• Over 2500 charge cycles at 80% Depth of Discharge
• 60% more usable energy
• Approximately 50% lighter and 30% smaller than equivalent AGM batteries

This makes it ideal for caravans, 4WD auxiliary systems, watercraft, and remote communication sites where space, weight, and performance are critical.

Installation Notes, System Compatibility & Expansion Options

This lithium battery is for internal installations only and must not be mounted in engine bays, wet environments, or compartments used to store gas. It supports parallel use with one other EPL-150BT-24V-G2 battery of the same size, but overall current draw must not exceed the BMS rating of a single unit. It is compatible with inverter setups up to 3500W—exceeding this limit can permanently damage the battery's management system.

If you require more storage capacity or series configurations, explore the Enerdrive Pro Series Power Pack Systems, which support larger systems with active cell balancing across the entire pack.

What’s Included & Why Enerdrive Leads the Way

Each purchase includes:

• 1 x Enerdrive EPL-150BT-24V-G2 150Ah Lithium Battery

Backed by a 5-year warranty, this battery is part of Enerdrive’s cutting-edge B-TEC range, built upon more than a decade of innovation in lithium battery systems. With thousands of systems already deployed across Australia, Enerdrive | Dometic remains a top choice for mobile, marine, and remote power solutions.

SKU: EPL-150BT-24V G2

Nominal Voltage: 25.6V

Nominal Capacity: 150Ah

Cycle Life (DOD – 80%): >2500 Cycles

Battery Charge Temperature: 0 ~ 45°C

Normal Charge Voltage (CV/CC): 28.80 ~ 29.20V

Standby (Float) Voltage: 27.00 ~ 27.60V

Maximum Charge Current: 100A @ 25°C for 60 minutes

Recommended Charge Current: 30 ~ 75A

Battery Discharge Temperature: -20 ~ 60°C

Battery Output Voltage Range: 22.00 ~ 29.20V

Maximum Discharge Current: 150A @ 25°C ± 5°C for 30 minutes

Pulse Discharge Current: 450A for 1.0s

Discharge Cut-off Voltage: ≤22.40V

Circuit Protection: Supplied with a LiFePO4 Battery Management System (BMS) that monitors and optimizes each prismatic cell during charge and discharge. Protects against overcharge, over discharge, and short circuit for safe and accurate battery operation.

Over-Charge Protection Per Cell: 3.90V ± 0.03V

Over-Charge Release Per Cell: 3.60V ± 0.05V

Over-Charge Release Method: Discharge below release voltage

Over-Discharge Protection Per Cell: 2.80V ± 0.05V

Over-Discharge Release Per Cell: 3.20V ± 0.05V

Over-Discharge Release Method: Apply Charge / Voltage ≥25.6V

Discharge Over Current: 170A for 30s / 400A for 3.5s

Protection Reset Time: 30s Auto Release

Over Current Release Method: Disconnect Load

Battery Discharge Over Temperature: Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over Temperature: Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit Protection: Auto release after 5s

Length: 521mm

Width: 280mm

Height: 238mm

Weight: Approx. 38.2 kg

Case Construction: Hi Impact ABS Plastic

Storage (≤30 days): -20°C ~ 60°C, 5 ~ 75% RH

Storage (≥90 days): -10°C ~ 45°C, 5 ~ 75% RH

Warranty: 5 Years
