1. Input Data

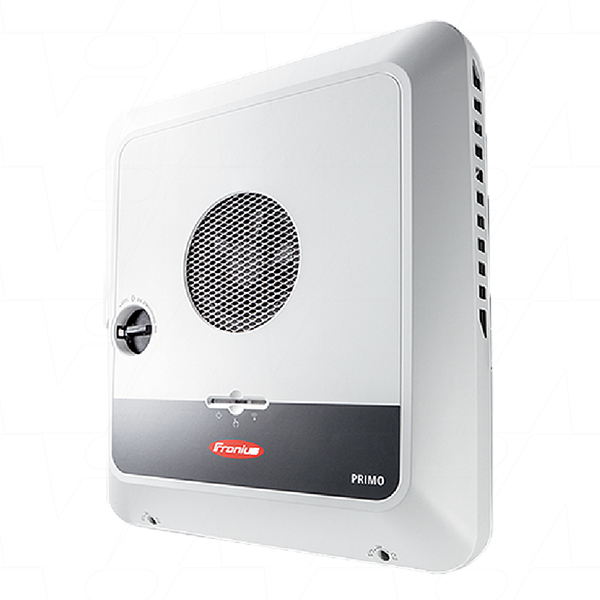

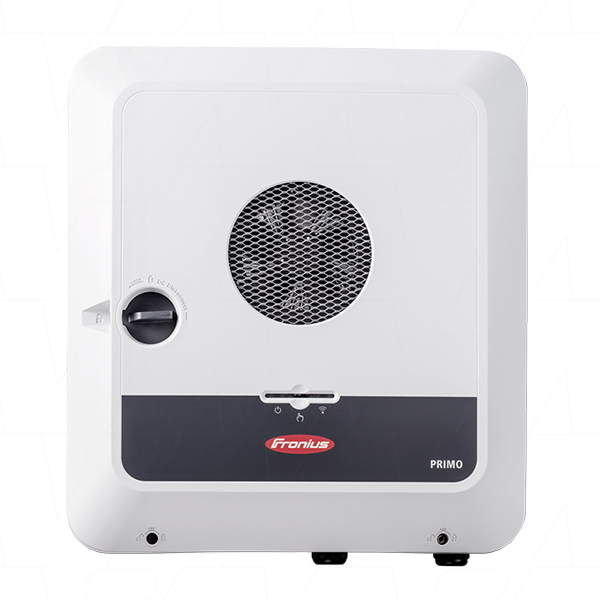

Range: Primo GEN24
Single or three phase: Single phase
Number of MPP trackers: 2
DC input voltage range: 65 - 600V (Udc min - Udc max)
Rated input voltage: 400V (Udc,r)
Feed-in start-up input voltage: 80V (Udc start)
Usable MPP voltage range: 65 - 480V
MPP voltage range (at rated power): 260 - 480V (Umpp min - Umpp max)
2. Output Data
AC rated power: 10kW (Pac,r)
Max. output power: 10kVA (Pac max)
Max. AC output current: 45.45A
3. Output Data PV Point
Max continuous output power: 3000VA
Nom. output current: 13A (Iac max)
Grid connection: 1~NPE 220 V / 230 V
Frequency: 50 Hz / 60 Hz
Max. switchover time PV-Point: 20s
Frequency in backup power mode: 53 Hz
4. General Data
Degree of protection: IP66
Night-time consumption: 10 W
Cooling: Regulated air cooling
Installation: Indoor and outdoor installation
Ambient temperature range: -40°C - +60°C
Permitted humidity: 0 - 100%
Max. altitude: 4000m
Max. efficiency (PV - grid): 97.3%
