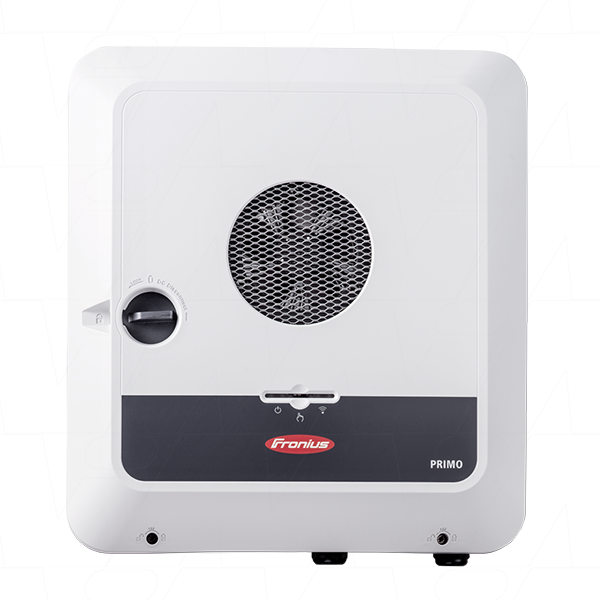

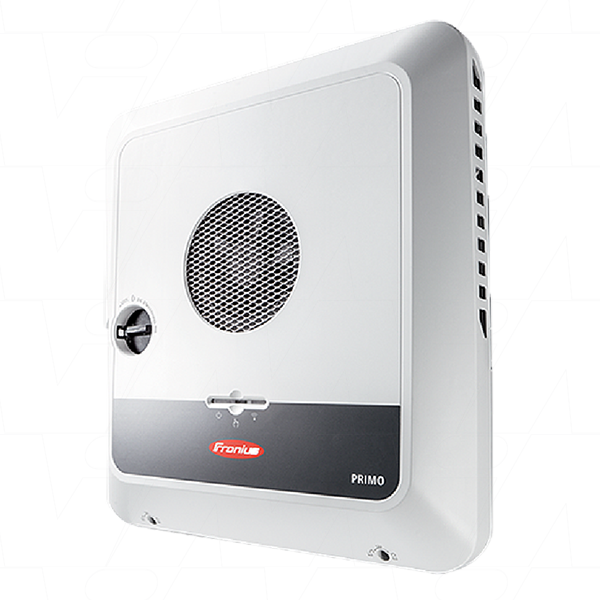

Fronius Primo GEN24 10.0 Plus

FroniusSKU: Primo GEN24 10.0 Plus

Price:
$6,149.95
Stock:
Low stock

Description

The Fronius Primo GEN24 Plus is a hybrid inverter with built-in backup power options.

It includes PV Point for basic backup power via a dedicated socket, and also supports a full backup solution when connected to a battery system.

With a battery, the Primo GEN24 Plus can help power your home during an outage, including larger loads such as heat pumps. It also supports Multi Flow Technology, allowing energy to flow to different parts of the system at the same time, even in backup mode.

Please note: Full backup requires additional external components for grid changeover.

With two backup options available, you can choose what suits your setup—simple socket backup or full-home backup.

The Fronius Primo GEN24 Plus also includes a range of features to support a more reliable, sustainable and independent energy supply.

Discover the key features for installers and their customers:

  • Intelligent energy management
  • Active cooling technology for a longer service life
  • Flexible and fast installation
  • Easy integration and management of Fronius or third-party components thanks to open interfaces.
  • Dual MPPT
  • IP66 Rated
  • WiFi connection

1. Input Data

Range: Primo GEN24 Plus

Single or three phase: Single phase

Number of MPP trackers: 2

DC input voltage range: 65 - 600V (Udc min - Udc max)

Rated input voltage: 400V (Udc,r)

Feed-in start-up input voltage: 80V (Udc start)

Usable MPP voltage range: 65 - 480V

MPP voltage range (at rated power): 260 - 480V (Umpp min - Umpp max)

2. Output Data

AC rated power: 10kW (Pac,r)

Max. output power: 10kVA (Pac max)

Max. AC output current: 45.45A

3. Output Data PV Point

Max continuous output power: 3000VA

Nom. output current: 13A (Iac max)

Grid connection: 1~NPE 220 V / 230 V

Frequency: 50 Hz / 60 Hz

Max. switchover time PV-Point: 20s

Frequency in backup power mode: 53 Hz

4. Battery Connection

Number of DC connections: 1

Max. input current: 22A (Idc max.)

DC input voltage range: 150V - 455V (Udc min - Udc max)

Max. input / output power: 10.36kW (Depending on the connected battery)

Min. DC input voltage: 150V

Max. DC input voltage: 455V

5. General Data

Degree of protection: IP66

Night-time consumption: 9 W

Cooling: Regulated air cooling

Installation: Indoor and outdoor installation

Ambient temperature range: -40°C to +60°C

Permitted humidity: 0 - 100%

Max. altitude: 4000m

Max. efficiency (PV - grid): 97.3%

Technical Documents

Data Sheet.pdf

Operating Instructions.pdf
