1. Input Data

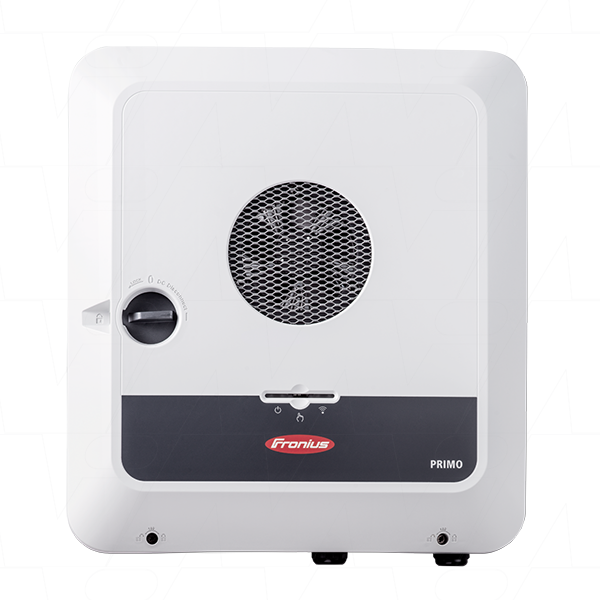

Range: Primo GEN24 Plus SC
Single or three phase: Single phase
Number of MPP trackers: 2
DC input voltage range: 65 - 600V (Udc min - Udc max)
Rated input voltage: 400V (Udc,r)
Feed-in start-up input voltage: 80V (Udc start)
Usable MPP voltage range: 65 - 480V
MPP voltage range (at rated power): 190 - 480V (Umpp min - Umpp max)
2. Output Data
AC rated power: 3000W (Pac,r)
Max. output power: 3000VA (Pac max)
Max. grid power demand: 3000VA
Nom. AC output current: 13.6A (220Vac); 13A (230Vac)
3. Output Data PV Point
Nom. output power: 3000VA
Grid connection: 1~NPE 220 V / 230 V
Switching time: <15s
4. Battery Connection
Number of DC connections: 1
Max. input current: 22A (Idc max.)
DC input voltage range: 150V - 465V (Udc min - Udc max)
Max. input / output power: 3110W (Depending on the connected battery)
Max. AC charging power: 3000W (Depending on the connected battery)
5. General Data
Degree of protection: IP66
Night-time consumption: <10 W
Cooling: Regulated air cooling
Installation: Indoor and outdoor installation
Ambient temperature range: -40°C to +60°C
Permitted humidity: 0 - 100%
Max. altitude: 4000m
Max. efficiency (PV - grid): 97.7%
