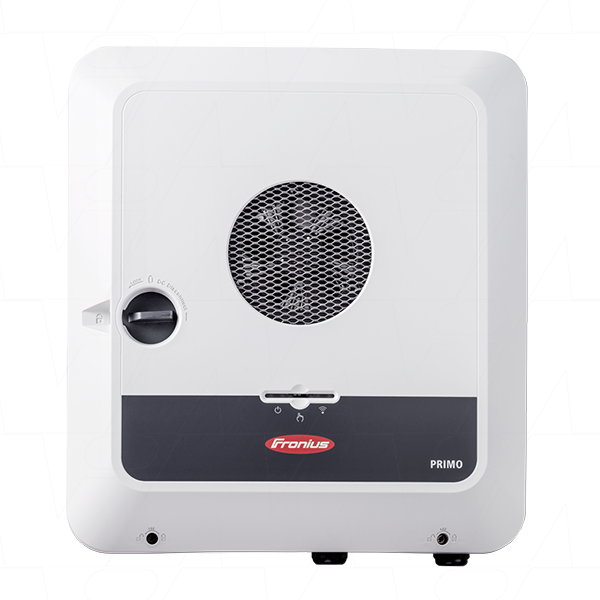

Fronius Primo GEN24 6.0 Plus
Description
- Description
- Specifications:
The Fronius Primo GEN24 6.0 Plus is a single-phase 6kW hybrid inverter with dual MPPT and built-in WiFi, designed for flexible residential solar and battery systems.
It features PV Point for basic backup via a dedicated socket, and supports full backup when paired with a battery and external changeover components. With Multi Flow Technology, it can manage multiple energy flows at once, even in backup mode—suitable for larger loads like heat pumps.
A solid choice for solar + battery systems, delivering efficient energy use and greater energy independence.
Discover the key features for installers and their customers:
- Intelligent energy management
- Active cooling technology for a longer service life
- Flexible and fast installation
- Easy integration and management of Fronius or third-party components thanks to open interfaces.
- Dual MPPT
- IP66 Rated
- WiFi connection
Pairs perfectly with a Fronius Reserva Battery
The Fronius Reserva is a modular, high-voltage DC solar battery system designed to seamlessly integrate with Fronius GEN24 Plus and Verto Hybrid inverters for backup power and increased energy independence. A slim design, and scalability up to 63 kWh by stacking towers, with a 10-year performance warranty and European data security.
With the PV Point and Full Backup*
The Fronius GEN24 Plus guarantees the power supply to the entire household with “Full Backup” *. Even big consumers, such as heat pumps, are reliably supplied with solar energy and energy from the connected battery. If the battery is discharged, it is charged again when the sun is shining.
*Available on the Fronius Primo GEN24 3.0–10.0 Plus
Versatility as standard
More functions. More control. More coverage. The Fronius GEN24 Plus continuously saves time and money thanks to their energy management functions.
The device design enables quick and flexible installation, while our software achieves optimal yields – even in shady conditions. At the same time, the integrated active cooling extends the service life and protects your investment.
Built-in freedom
Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.
Easy monitoring
Everything under control: With our monitoring tool, you can always keep an eye on your PV system and keep your energy revolution on track. And if ever anything isn't quite right, Solar.web automatically notifies the responsible installer.
Sustainability focused
Fronius products and solutions are “Made in Europe” and are consistently developed and implemented with sustainability in mind.
100% recycled aluminium for the heat sinks in all Fronius GEN24 Plus inverters.
100% renewable energy is used for production.
Maximum reparability on-site thanks to easy-to-replace individual components.
This Inverter is available as a PV model: Primo GEN24 6.0
1. Input Data
Range: Primo GEN24 Plus
Single or three phase: Single phase
Number of MPP trackers: 2
DC input voltage range: 65 - 600V (Udc min - Udc max)
Rated input voltage: 400V (Udc,r)
Feed-in start-up input voltage: 80V (Udc start)
Usable MPP voltage range: 65 - 480V
MPP voltage range (at rated power): 230 - 480V (Umpp min - Umpp max)
2. Output Data
AC rated power: 6000W (Pac,r)
Max. output power: 6000VA (Pac max)
Max. grid power demand: 6000VA
Max. AC output current: 27.5A
3. Output Data PV Point
Max continuous output power: 3000VA
Nom. output current: 13A (Iac max)
Grid connection: 1~NPE 220 V / 230 V
Frequency: 50 Hz / 60 Hz
Max. switchover time PV-Point: 15s
Max. switchover time Full Backup: 10s
Frequency in backup power mode: 53 Hz
4. Battery Connection
Number of DC connections: 1
Max. input current: 22A (Idc max.)
DC input voltage range: 150V - 455V (Udc min - Udc max)
Max. input / output power: 6200W (Depending on the connected battery)
Max. AC charging power: 6000W (Depending on the connected battery)
Min. DC input voltage: 150V
Max. DC input voltage: 455V
5. General Data
Degree of protection: IP66
Night-time consumption: <10 W
Cooling: Regulated air cooling
Installation: Indoor and outdoor installation
Ambient temperature range: -40°C to +60°C
Permitted humidity: 0 - 100%
Max. altitude: 4000m
Max. efficiency (PV - grid): 97.6%
Additional Details
Chemistry: Lithium Iron Phosphate (LiFePO4)
Voltage: 65 - 600V
Termination: M8
Size: 6.0kW
Width: 474mm
Height: 530mm
Depth: 165mm
Weight: 15.4kg
