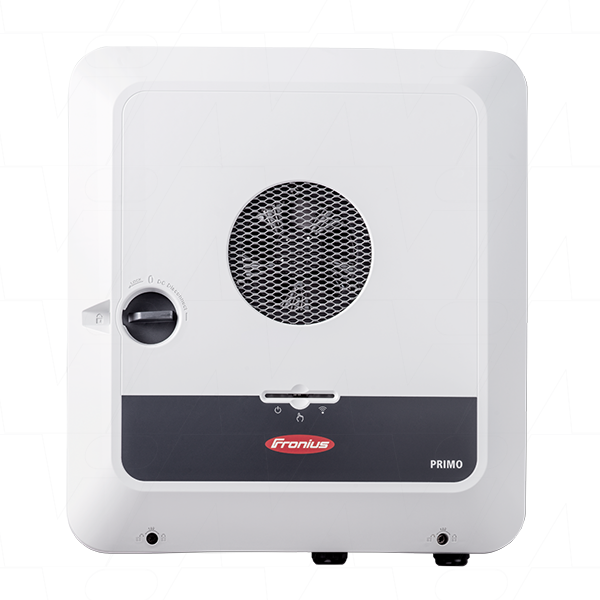

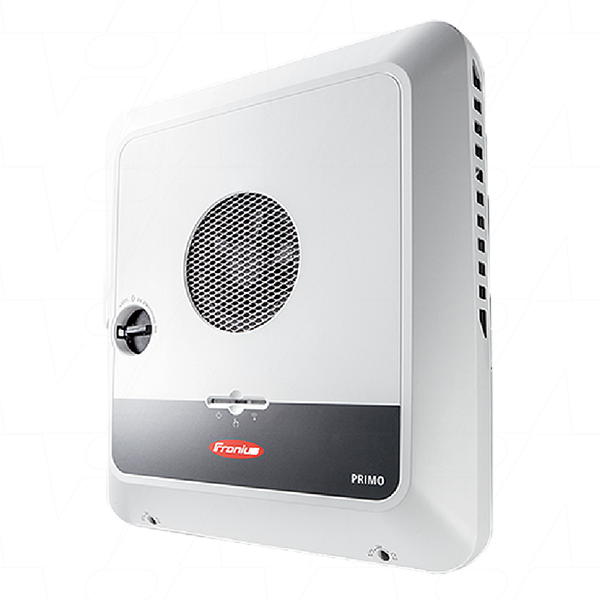

Fronius Primo GEN24 8.0

FroniusSKU: Primo GEN24 8.0

Price:
$3,999.95
Stock:
Low stock

Description

The Fronius Primo GEN24 8.0 is a single-phase 8kW PV inverter with dual MPPT and built-in WiFi, designed for flexible residential solar systems.

It features PV Point for basic backup power, supplying energy to a dedicated socket during outages when solar is available.

A reliable choice for high-output residential solar systems, delivering efficient performance and improved energy independence.

Discover the key features for installers and their customers:

  • Intelligent energy management
  • Active cooling technology for a longer service life
  • Flexible and fast installation
  • Easy integration and management of Fronius or third-party components thanks to open interfaces.
  • Dual MPPT
  • IP66 Rated
  • WiFi connection

Reliable energy supply

The Fronius GEN24 provides an integrated basic backup power function. “PV Point” is a socket that supplies connected devices with backup power, so long as the sun is shining.

Versatility as standard

More functions. More control. More coverage. The Fronius GEN24 continuously saves time and money thanks to their energy management functions.
The device design enables quick and flexible installation, while our software achieves optimal yields – even in shady conditions. At the same time, the integrated active cooling extends the service life and protects your investment.

Built-in freedom

Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.

Easy monitoring

Everything under control: With our monitoring tool, you can always keep an eye on your PV system and keep your energy revolution on track. And if ever anything isn't quite right, Solar.web automatically notifies the responsible installer.

Sustainability focused

Fronius products and solutions are “Made in Europe” and are consistently developed and implemented with sustainability in mind.

100% recycled aluminium for the heat sinks in all Fronius GEN24 inverters.
100% renewable energy is used for production.
Maximum reparability on-site thanks to easy-to-replace individual components.

This Inverter is available as a Hybrid model: Primo GEN24 8.0 Plus

1. Input Data

Range: Primo GEN24

Single or three phase: Single phase

Number of MPP trackers: 2

DC input voltage range: 65 - 600V (Udc min - Udc max)

Rated input voltage: 400V (Udc,r)

Feed-in start-up input voltage: 80V (Udc start)

Usable MPP voltage range: 65 - 480V

MPP voltage range (at rated power): 260 - 480V (Umpp min - Umpp max)

2. Output Data

AC rated power: 8000W (Pac,r)

Max. output power: 8000VA (Pac max)

Max. AC output current: 47.45A

3. Output Data PV Point

Max continuous output power: 3000VA

Nom. output current: 13A (Iac max)

Grid connection: 1~NPE 220 V / 230 V

Frequency: 50 Hz / 60 Hz

Max. switchover time PV-Point: 20s

Frequency in backup power mode: 53 Hz

4. General Data

Degree of protection: IP66

Night-time consumption: 10 W

Cooling: Regulated air cooling

Installation: Indoor and outdoor installation

Ambient temperature range: -40°C to +60°C

Permitted humidity: 0 - 100%

Max. altitude: 4000m

Max. efficiency (PV - grid): 97.6%

Additional Details

Chemistry: Lithium Iron Phosphate (LiFePO4)

Voltage: 65 - 600V

Termination: M8

Size: 8.0kW

Width: 529mm

Height: 595mm

Depth: 180mm

Weight: 21kg

Technical Documents

Data Sheet.pdf

Operating Instructions.pdf
