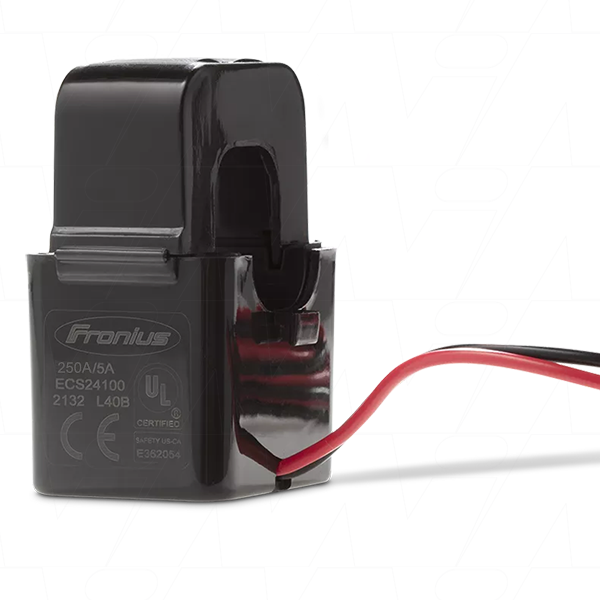

Fronius Smart Meter CT A 250/5A

FroniusSKU: Smart Meter CT A 250/5A

Price:
$261.95
Stock:
Low stock

Description

Fronius Smart Meter Current Transformer A 250/5A for 50kA-3 & TS 5kA-3 41,0010,0101

The Fronius Smart Meter CT is used to measure high current in larger solar systems where direct measurement is not suitable.

It converts the current into a signal that can be accurately measured and monitored by the system.

The split-core design makes installation quick and easy, allowing it to be fitted around the cable without disconnecting it.



General Specifications

Compatible Smart Meters: Fronius Smart Meter 50kA-3, TS 5kA-3

Accuracy: 1 (Depending on the apparent ohmic resistance)

Type of Installation: Split-Core

Diameter: 24 mm

Cable Length: 1 Metre

Temperature Range: -40°C to +65°C

Apparent ohmic resistance: 2.5 VA (Class 1)

Additional Details

Application: Residential and Light Commercial Solar, Off Grid Solar

Size: 250A

Width: 45mm

Height: 66.5mm

Depth: 34.4mm

Weight: 24g

Technical Documents

Data Sheet.pdf
