Fronius Smart Meter CT A 400/5A

FroniusSKU: Smart Meter CT A 400/5A

Price:
$261.95
Stock:
Low stock

Description

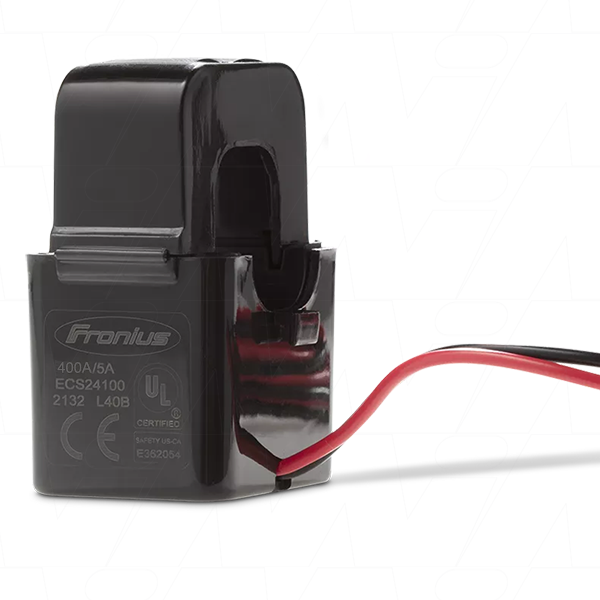

Fronius Smart Meter Current Transformer A 400/5A for 50kA-3 & TS 5kA-3 41,0010,0103

The Fronius Smart Meter CT is designed for measuring high current in larger solar systems where direct measurement is not suitable.

It uses a current transformer (CT) to convert the current into a signal that can be accurately measured by the system.

The split-core design allows for fast installation, as it can be fitted around the conductor without disconnecting the cable.



General Specifications

Compatible Smart Meters: Fronius Smart Meter 50kA-3, TS 5kA-3

Accuracy: 1 (Depending on the apparent ohmic resistance)

Type of Installation: Split-Core

Diameter: 36 mm

Cable Length: 1 Metre

Temperature Range: -40°C to +65°C

Apparent ohmic resistance: 5 VA (Class 1)

Product Details

Description: Fronius Smart Meter Current Transformer A 400/5A for 50kA-3 & TS 5kA-3 41,0010,0103

Application: Residential and Light Commercial Solar, Off Grid Solar

Size: 400A

Width: 57mm

Height: 81.5mm

Depth: 38.4mm

Weight: 36g

Technical Documents

Data Sheet.pdf
