1. Input Data
Range: Symo GEN24 Plus
Single or three phase: Three phase
Number of MPP trackers: 2
DC input voltage range: 80 - 1000V (Udc min - Udc max)
Rated input voltage: 610V (Udc,r)
Feed-in start-up input voltage: 80V (Udc start)
Usable MPP voltage range: 80 - 800V
MPP voltage range (at rated power): 125 - 800V (Umpp min - Umpp max)
2. Output Data
AC rated power: 3000W (Pac,r)
Max. output power: 3000VA (Pac max)
Max. grid power demand: 10VA
Max. AC output current: 8A
3. Output Data PV Point
Max continuous output power: 3000VA
Nom. output current: 13A (Iac max)
Grid connection: 1~NPE 220 V / 230 V
Frequency: 50 Hz / 60 Hz
Max. switchover time PV-Point: 15s
Frequency in backup power mode: 53 Hz
4. General Data
Degree of protection: IP66
Night-time consumption: <10 W
Cooling: Active cooling
Installation: Indoor and outdoor installation
Ambient temperature range: -25°C to +60°C
Permitted humidity: 0 - 100%
Max. altitude: 4000m
Max. efficiency (PV - grid): 98.1%
Additional Details

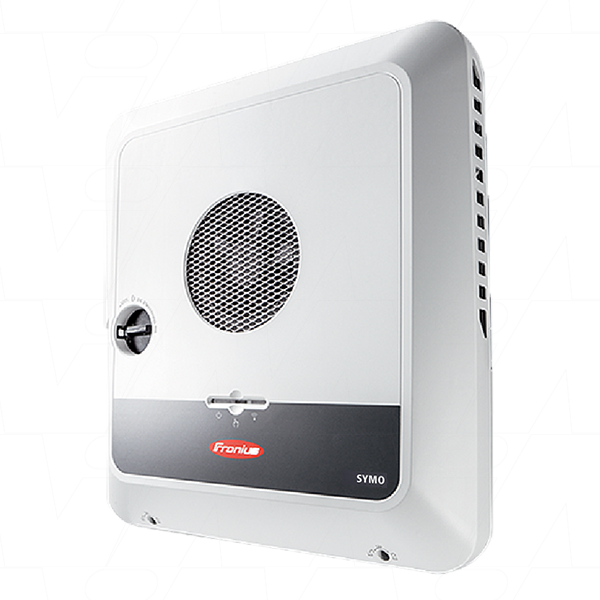

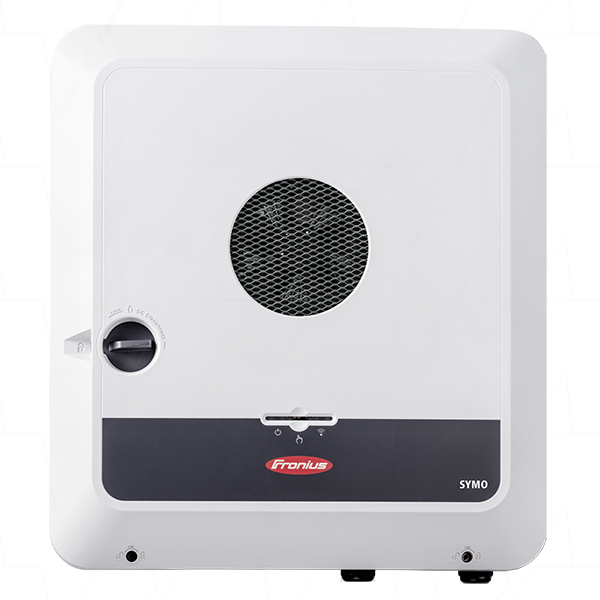

Description: Fronius Symo GEN 24 3.0 Plus SC Three Phase 3kW Hybrid Inverter with Dual MPPT and WiFi 4,210,190,002
Application: Residential and Light Commercial Solar, Off Grid Solar
Chemistry: Lithium Iron Phosphate (LiFePO4)
Voltage: 80 - 1000V
Termination: M8
Size: 3kW
Width: 474mm
Height: 530mm
Depth: 165mm
Weight: 15.6kg
