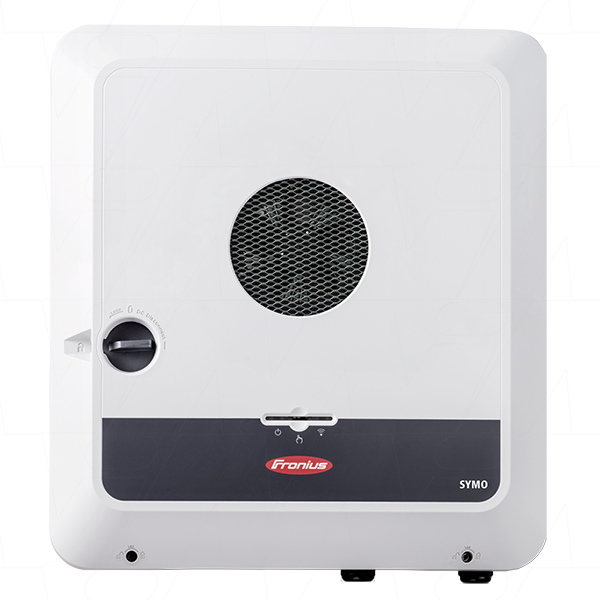

Fronius Symo GEN24 8.0 SC

FroniusSKU: Symo GEN24 8.0 SC

Price:
$4,999.95
Stock:
Low stock

Description

Fronius Symo GEN 24 8.0 SC Three Phase 8kW PV Inverter with Dual MPPT and WiFi 4,210,185

The Fronius Symo GEN24 is a three-phase solar inverter designed for residential PV systems, featuring integrated basic backup via PV Point.

It enables efficient use of solar energy, with PV Point delivering backup power to a dedicated socket during outages when solar generation is available. Built for flexible system design, it supports improved self-consumption and reliable performance in grid-connected solar systems.

A proven solution for installers and homeowners needing a solar inverter with backup capability.

This Inverter is available as a Hybrid model: Symo GEN24 8.0 Plus SC or Symo GEN24 8.0 Plus SC

1. Input Data

Range: Symo GEN24

Single or three phase: Three phase

Number of MPP trackers: 2

DC input voltage range: 80 - 1000V (Udc min - Udc max)

Rated input voltage: 610V (Udc,r)

Feed-in start-up input voltage: 80V (Udc start)

Usable MPP voltage range: 80 - 800V

MPP voltage range (at rated power): 224 - 800V (Umpp min - Umpp max)

2. Output Data

AC rated power: 8000W (Pac,r)

Max. output power: 8000VA (Pac max)

Max. AC output current: 16.4A

3. Output Data PV Point

Max continuous output power: 3000VA

Nom. output current: 13A (Iac max)

Grid connection: 1~NPE 220 V / 230 V

Frequency: 50 Hz / 60 Hz

Max. switchover time PV-Point: 15s

Frequency in backup power mode: 53 Hz

4. General Data

Degree of protection: IP66

Night-time consumption: <10 W

Cooling: Regulated air cooling

Installation: Indoor and outdoor installation

Ambient temperature range: -25°C to +60°C

Permitted humidity: 0 - 100%

Max. altitude: 4000m

Max. efficiency (PV - grid): 98.2%

Additional Details

Description: Fronius Symo GEN 24 8.0 SC Three Phase 8kW PV Inverter with Dual MPPT and WiFi 4,210,185

Application: Residential and Light Commercial Solar, Off Grid Solar

Chemistry: Lithium Iron Phosphate (LiFePO4)

Voltage: 80 - 1000V

Termination: M8

Size: 8kW

Width: 529mm

Height: 595mm

Depth: 180mm

Weight: 23.38kg

Technical Documents

Data Sheet.pdf

Operating Instrucitons.pdf
