Fronius Tauro 50-3-D

FroniusSKU: Tauro 50-3-D

Price:
$14,599.95
Stock:
Low stock

Description

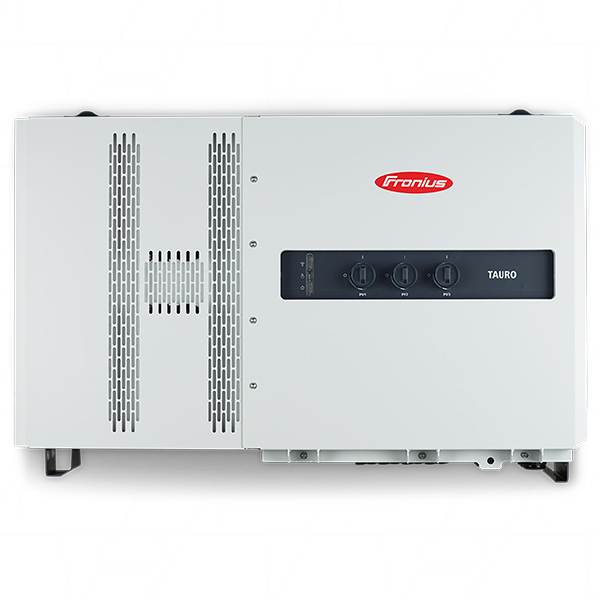

Fronius Tauro 50-3-D 50kW 3 Phase Inverter 3 MPPTs 4,210,300,002

The Fronius Tauro is a commercial solar inverter built for large-scale PV systems, offering flexible system design and low operating costs.

Designed for harsh conditions, it features a double-walled enclosure and active cooling to maintain full output and high energy yield, even in extreme heat and direct sunlight. It supports both centralised (P variant) and decentralised (D variant) system designs, making it ideal for complex commercial installations.

A durable solution for reliable performance in commercial and industrial solar applications.

Robust and durable

Designed to buck direct sunlight and high temperatures: its double-walled housing and active cooling give the Fronius Tauro a long service life and make it a robust commercial solar inverter that will always deliver top performance.

Lower costs and efficient servicing

Fronius Tauro is quick to install and efficient to maintain. When servicing is required, only the affected power stage set needs to be replaced rather than the entire project inverter. This makes for safe operation and fast, cost-efficient servicing.

Intelligent control and an open system

Fronius Tauro can be conveniently monitored, controlled and maintained using Fronius Solar.web which lets you keep an eye on your system at all times. Its open system architecture means third-party components are easily integrated.

With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.

Design flexibility with focus on repairability and sustainability

Centralised, decentralised, vertical or horizontal: Fronius Tauro offers you maximum flexibility in the design and installation of large-scale PV systems. The flexible Tauro and the cost-effective Tauro ECO can be combined in any way you choose. Preintegrated surge protection device and AC daisy chaining reduce the need for additional components and cables.

Designed for durability and with the fewest possible, replaceable components. This makes the Tauro particularly robust and failure-resistant, and means that only individual parts need to be replaced during on-site servicing, thereby saving time and conserving resources.

1. Input Data

Range: Tauro - D variant

Single or three phase: Three phase

Number of MPP trackers: 3

Max. input current: 134A (Idc max)

Max. short circuit current: 240A (Isc max, inverter)

DC input voltage range: 200 - 1000V (Udc min - Udc max)

Feed-in start-up input voltage: 200V (Udc start)

MPP voltage range: 400 - 870V (Umpp min - Umpp max)

Max. PV generator power: 75kWp (Pdc max)

2. Output Data

AC nominal output: 50kW (Pac,r)

Max. output power: 50kVA

Max. AC output current: 75.8A at 380Vac / 72.5A at 400Vac (Iac nom)

Grid connection: 3~ (N)PE 400/230; 3~ (N)PE 380/220

Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)

Power factor: 0 - 1 ind. / cap. (cos φac,r)

3. General Data

Degree of protection: IP65

Night-time consumption: <16 W

Cooling: Active cooling technology and double-wall system

Installation: Indoor and outdoor installation (direct sunlight is possible)

Ambient temperature range: -40°C to +65°C (Optional AC-disconnect inside inverter: -30°C to +65°C)

Max. efficiency: 98.5%

MPP adaptation efficiency: > 99.9%

Additional Details

Description: Fronius Tauro 50-3-D 50kW 3 Phase Inverter 3 MPPTs 4,210,300,002

Application: Large Scale and Commercial Solar, Off Grid Solar

Chemistry: Lithium Iron Phosphate (LiFePO4)

Voltage: 200 - 1000V

Size: 50kW

Width: 1109mm

Height: 755mm

Depth: 346mm

Weight: 92kg

Technical Documents

Operating Instrucitons.pdf

Fronius Tauro Direct version.pdf

Fronius Tauro.pdf
