1. Input Data
Range: Tauro - P variant
Single or three phase: Three phase
Number of MPP trackers: 3
Max. input current: 134A (Idc max)
Max. short circuit current: 240A (Isc max, inverter)
DC input voltage range: 200 - 1000V (Udc min - Udc max)
Feed-in start-up input voltage: 200V (Udc start)
MPP voltage range: 400 - 870V (Umpp min - Umpp max)
Max. PV generator power: 75kWp (Pdc max)
2. Output Data
AC nominal output: 50kW (Pac,r)
Max. output power: 50kVA
Max. AC output current: 75.8A at 380Vac / 72.5A at 400Vac (Iac nom)
Grid connection: 3~ (N)PE 400/230; 3~ (N)PE 380/220
Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)
Power factor: 0 - 1 ind. / cap. (cos φac,r)
3. General Data
Degree of protection: IP65
Night-time consumption: <16 W
Cooling: Active cooling technology and double-wall system
Installation: Indoor and outdoor installation (direct sunlight is possible)
Ambient temperature range: -40°C to +65°C (Optional AC-disconnect inside inverter: -30°C to +65°C)
Max. efficiency: 98.5%
MPP adaptation efficiency: > 99.9%
Additional Details

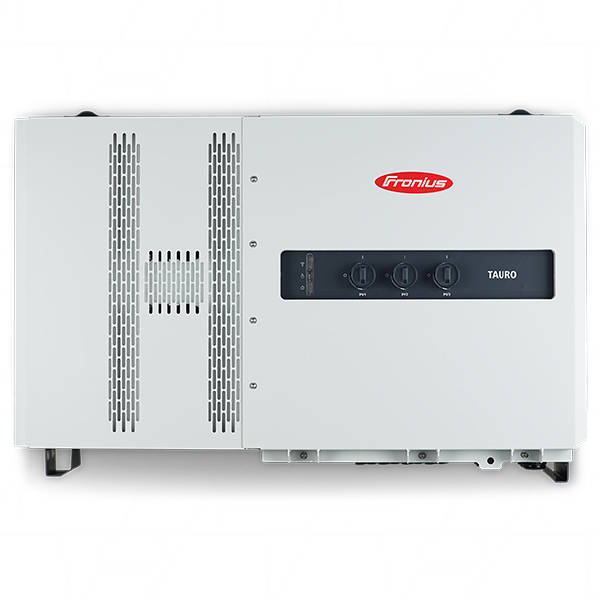

Description: Fronius Tauro 50-3-P 50kW 3 Phase Inverter 3 MPPTs 4,210,301,002
Application: Large Scale and Commercial Solar, Off Grid Solar
Chemistry: Lithium Iron Phosphate (LiFePO4)
Voltage: 200 - 1000V
Size: 50kW
Width: 1109mm
Height: 755mm
Depth: 346mm
Weight: 98kg
