1. Input Data
Range: Verto
Single or three phase: Three phase
Number of MPP trackers: 3
DC input voltage range: 150 - 1000V (Udc min - Udc max)
Rated input voltage: 600V (Udc,r)
Feed-in start-up input voltage: 150V (Udc start)
MPP voltage range: 150 - 870V (Umpp min - Umpp max)
Max. usable DC output: 13,000Wpeak (Pdc max, PV)
Max. PV generator output (MPPT): 19,500Wpeak (PPV max)
Max. PV generator output (Inverter): 22,500Wpeak (PPV max)
2. Output Data
AC rated power: 15kW (Pac,r)
Max. output power: 15kVA
Max. AC output current: 22.7A at 380Vac / 21.7A at 400Vac / 19.7A at 440Vac / 18.2A at 480Vac
Grid connection: 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/275
Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)
3. General Data
Degree of protection: IP66
Night-time consumption: <16 W
Cooling: Active Cooling Technology
Installation: Indoor and outdoor installation, 90°–10° tilt
Ambient temperature range: -40°C to +60°C
Permitted humidity: 0 - 100%
Max. altitude: 3,000 / 4,000m (unrestricted / restricted voltage range)
Max. efficiency: 98.53%
MPP adaptation efficiency: > 99.9%
Additional Details

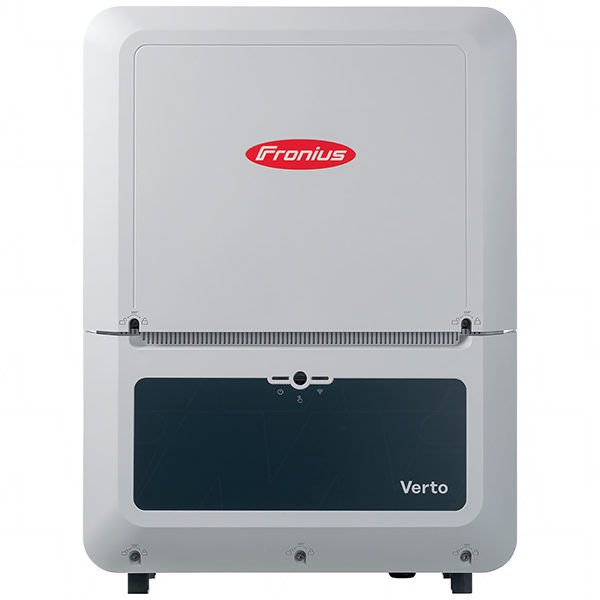

Description: Fronius Verto 15.0 SPD 1+2 15kW 3 MPPT PV 3 Phase Inverter 4,210,420
Application: Residential and Light Commercial Solar, Off Grid Solar
Chemistry: Lithium Iron Phosphate (LiFePO4)
Voltage: 150 - 1000V
Size: 15kW
Width: 540mm
Height: 730mm
Depth: 278mm
Weight: 35.2kg
