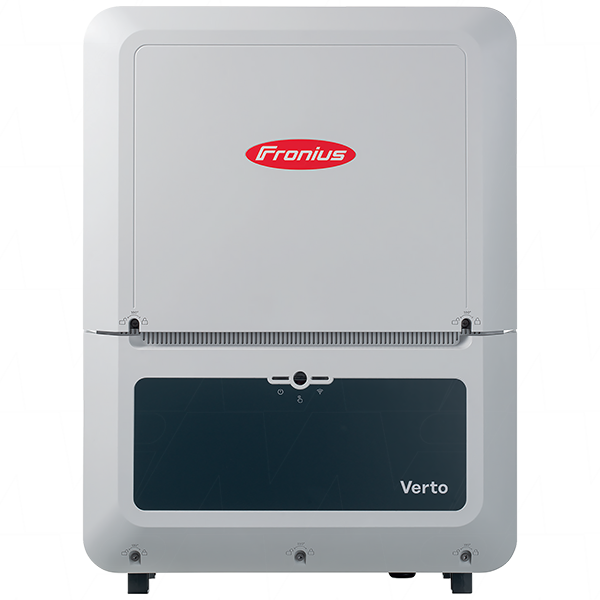

Fronius Verto 25.0 SPD 1+2

FroniusSKU: Verto 25.0 SPD 1+2

Price:
$6,499.95
Stock:
Low stock

Description

Fronius Verto 25.0 SPD 1+2 25kW 4 MPPT PV 3 Phase Inverter 4,210,432

The Fronius Verto is a commercial solar inverter built for small businesses, apartment buildings and agricultural PV systems.

It features a wide input voltage range and advanced shading management, allowing flexible system design across different module orientations and roof pitches. Suitable for both new installations and system expansions, it supports efficient performance in complex solar layouts.

A reliable solution for commercial and agricultural solar applications requiring flexibility and consistent output.

High flexibility in system planning

As flexible as your needs. With its innovative multi-MPPT concept featuring high current MPPTs and a wide input voltage range, the Fronius Verto always ensures maximum efficiency even for complex roof layouts and module configurations. Open interfaces allow the seamless integration of third-party components.

Maximum output, optimal yields

Optimal yields even with partial shading? The Dynamic Peak Manager minimises potential energy losses to an absolute minimum. The intelligent shading management maximises the performance of every PV system and is already standard in the Fronius Verto.

Built-in freedom

Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.

Easy monitoring

With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.

Comprehensive protection

The Fronius Verto comes equipped with integrated, replaceable AC and DC surge protection devices (SPDs), ensuring reliable protection, easy installation, and eliminating the need for additional components. Additionally, automatic arc fault detection (AFCI) provides enhanced safety by quickly identifying and extinguishing potential arcs, significantly reducing fire risk and ensuring your PV system remains safe and efficient.

1. Input Data

Range: Verto

Single or three phase: Three phase

Number of MPP trackers: 4

DC input voltage range: 150 - 1000V (Udc min - Udc max)

Rated input voltage: 600V (Udc,r)

Feed-in start-up input voltage: 150V (Udc start)

MPP voltage range: 150 - 870V (Umpp min - Umpp max)

Max. usable DC output: 13,000Wpeak (Pdc max, PV)

Max. PV generator output (MPPT): 20,000Wpeak (PPV max)

Max. PV generator output (Inverter): 37,500Wpeak (PPV max)

2. Output Data

AC rated power: 25kW (Pac,r)

Max. output power: 25kVA

Max. AC output current: 37.9A at 380Vac / 36.2A at 400Vac / 32.8A at 440Vac / 30.1A at 480Vac

Grid connection: 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/277

Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)

3. General Data

Degree of protection: IP66

Night-time consumption: <16 W

Cooling: Active Cooling Technology

Installation: Indoor and outdoor installation, 90°–10° tilt

Ambient temperature range: -40°C to +60°C

Permitted humidity: 0 - 100%

Max. altitude: 3,000 / 4,000m (unrestricted / restricted voltage range)

Max. efficiency: 97.47%

MPP adaptation efficiency: > 99.9%

Additional Details

Description: Fronius Verto 25.0 SPD 1+2 25kW 4 MPPT PV 3 Phase Inverter 4,210,432

Application: Residential and Light Commercial Solar, Off Grid Solar

Chemistry: Lithium Iron Phosphate (LiFePO4)

Voltage: 150 - 1000V

Size: 25kW

Width: 574mm

Height: 865mm

Depth: 279mm

Weight: 41.75kg

Technical Documents

Data Sheet.pdf

Product Advantages.pdf
