Fronius Verto Plus 20.0 SPD 1+2

FroniusSKU: Verto Plus 20.0 SPD 1+2

Price:
$9,099.95
Stock:
Low stock

Description

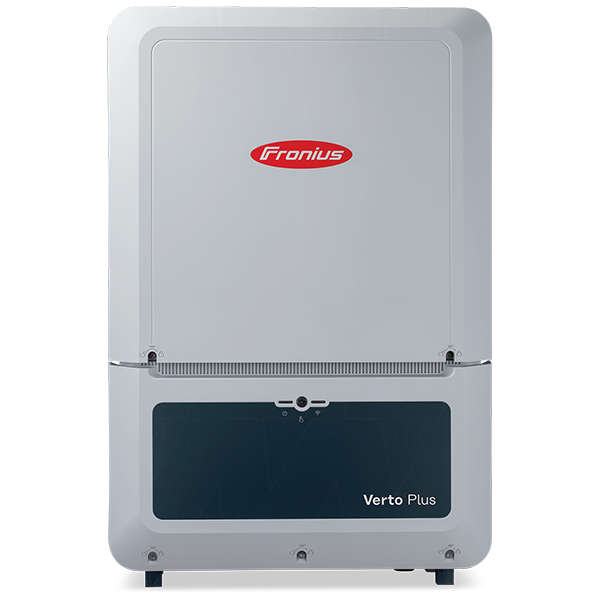

Fronius Verto 20.0 Plus SPD 1+2 20kW 3 MPPT Hybrid 3 Phase Inverter 4,210,454

The Fronius Verto Plus is a commercial hybrid inverter designed for small business, apartment and agricultural solar systems, supporting flexible PV and battery integration.

It features a wide input voltage range and advanced shading management, allowing efficient performance across varying module orientations and roof pitches. Ideal for both new installations and system expansions, it handles complex PV layouts with ease.

A reliable solution for commercial solar and battery systems requiring flexibility, scalability and consistent output.

1. Input Data

Range: Verto Plus

Single or three phase: Three phase

Number of MPP trackers: 3

DC input voltage range: 150 - 1000V (Udc min - Udc max)

Rated input voltage: 600V (Udc,r)

Feed-in start-up input voltage: 150V (Udc start)

MPP voltage range: 150 - 870V (Umpp min - Umpp max)

Max. usable DC power (MPPT): 13,000W

Max. usable DC power (Inverter): 30,000W

Max. PV generator output (MPPT): 20,000Wpeak

Max. PV generator output (Inverter): 30,000Wpeak

2. Output Data

AC rated power: 20kW (Pac,r)

Max. output power: 20kVA

Max. AC output current: 30.3A at 380Vac / 29.0A at 400Vac

Grid connection: 3~ (N)PE 380/220; 3~ (N)PE 400/230

Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)

3. Output Data Full Backup

Nominal Full Backup output power: 20kVA

Peak output power: 30kVA

Nominal Full Backup phase power: 7000VA at 380Vac / 7300VA at 400Vac

Supported phase asymmetry Full Backup: 25.0A / 32.0A peak

4. Battery Connection

Max. nominal dis/charging current: 50A (Idc max)

DC input voltage range: 150–700V (Udc min - Udc max)

Max. charging power: 30,000W

Max. discharging power: 20,000W

Max. charging power for AC coupling: 20,000W

5. General Data

Degree of protection: IP66

Night-time consumption: <16 W

Cooling: Regulated air cooling

Installation: Indoor and outdoor installation, 90°–10° tilt

Ambient temperature range: -25°C to +60°C

Permitted humidity: 0 - 100%

Max. altitude: 3,000 / 4,000m (unrestricted / restricted voltage range)

Max. efficiency: 98.15%

MPP adaptation efficiency: > 99.9%

Additional Details

Description: Fronius Verto 20.0 Plus SPD 1+2 20kW 3 MPPT Hybrid 3 Phase Inverter 4,210,454

Application: Residential and Light Commercial Solar, Off Grid Solar

Chemistry: Lithium Iron Phosphate (LiFePO4)

Voltage: 150 - 1000V

Size: 20kW

Width: 574mm

Height: 865mm

Depth: 279mm

Weight: 43kg

Technical Documents

Data Sheet.pdf

Product Advantages.pdf
