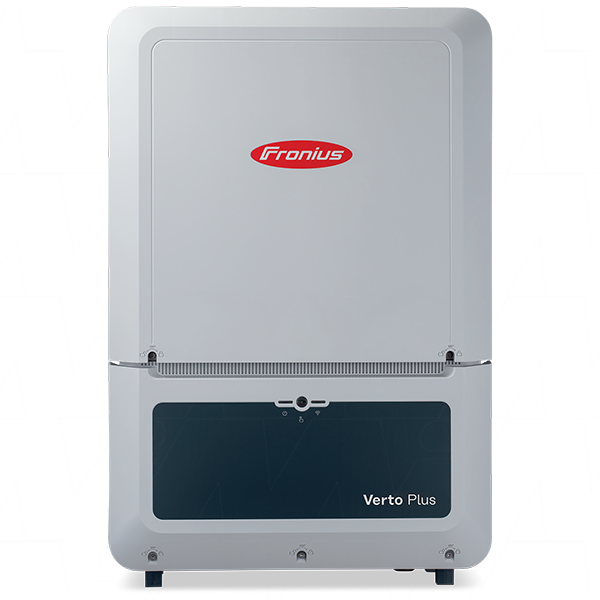

Fronius Verto Plus 33.3 SPD 1+2
Description
- Description
- Specifications:
Fronius Verto 33.3 Plus SPD 1+2 33.3kW 3 MPPT Hybrid 3 Phase Inverter 4,210,460
The Fronius Verto Plus is a commercial hybrid inverter designed for small business, apartment and agricultural PV systems, with support for solar + battery setups.
It features a wide input voltage range and advanced shading management, enabling flexible system design across different module orientations and roof pitches. Suitable for both new installs and system expansions, it delivers reliable performance in complex solar layouts.
A practical solution for commercial solar and battery systems requiring flexibility and consistent output.
Pairs perfectly with a Fronius Reserva Battery
The Fronius Reserva is a modular, high-voltage DC solar battery system designed to seamlessly integrate with Fronius GEN24 Plus and Verto Hybrid inverters for backup power and increased energy independence. A slim design, and scalability up to 63 kWh by stacking towers, with a 10-year performance warranty and European data security.
With full backup capability
When combined with a battery storage system, the Fronius Verto Plus provides a powerful, fully-fleched three-phase backup power supply* for the entire building. It is capable of handling even large loads such as heat pumps, cooling systems, fans or grinders. This makes the Fronius Verto Plus a reliable and safe solution for securing the power supply even in critical situations.
High flexibility in system planning
The Fronius Verto Plus offers maximum flexibility with three high-current MPP Trackers and a wide voltage range. This makes the inverter ideally suited to complex system designs and all your individual requirements.
Maximum output, optimal yields
Optimal yields even with partial shading? The Dynamic Peak Manager minimises potential energy losses to an absolute minimum. The intelligent shading management maximises the performance of every PV system and is already standard in the Fronius Verto.
Built-in freedom
Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.
Easy monitoring
With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.
With Fronius, you can also rest assured that your data is in the best hands. This is ensured by our certified information security system and our servers and cloud storage in Europe.
Comprehensive protection
The Fronius Verto Plus comes equipped with integrated, replaceable AC and DC surge protection devices (SPDs), ensuring reliable protection, easy installation, and eliminating the need for additional components. Additionally, automatic arc fault detection (AFCI) provides enhanced safety by quickly identifying and extinguishing potential arcs, significantly reducing fire risk and ensuring your PV system remains safe and efficient.
1. Input Data
Range: Verto Plus
Single or three phase: Three phase
Number of MPP trackers: 3
DC input voltage range: 150 - 1000V (Udc min - Udc max)
Rated input voltage: 600V (Udc,r)
Feed-in start-up input voltage: 150V (Udc start)
MPP voltage range: 150 - 870V (Umpp min - Umpp max)
Max. usable DC power (MPPT): 13,000W
Max. usable DC power (Inverter): 39,000W
Max. PV generator output (MPPT): 20,000Wpeak
Max. PV generator output (Inverter): 50,000Wpeak
2. Output Data
AC rated power: 33,300W (Pac,r)
Max. output power: 33,300VA
Max. AC output current: 50.5A at 380Vac / 50.5A at 400Vac
Grid connection: 3~ (N)PE 380/220; 3~ (N)PE 400/230
Frequency: 50/60 (45–65)Hz (frequency range fmin - fmax)
3. Output Data Full Backup
Nominal Full Backup output power: 33,300VA
Peak output power: 50,000VA
Nominal Full Backup phase power: 11,100VA at 380Vac / 11,100VA at 400Vac
Supported phase asymmetry Full Backup: 50.0A / 72.5A peak
4. Battery Connection
Max. nominal dis/charging current: 50A (Idc max)
DC input voltage range: 150–700V (Udc min - Udc max)
Max. charging power: 35,000W
Max. discharging power: 33,300W
Max. charging power for AC coupling: 33,300W
5. General Data
Degree of protection: IP66
Night-time consumption: <16 W
Cooling: Regulated air cooling
Installation: Indoor and outdoor installation, 90°–10° tilt
Ambient temperature range: -25°C to +60°C
Permitted humidity: 0 - 100%
Max. altitude: 3,000 / 4,000m (unrestricted / restricted voltage range)
Max. efficiency: 98.15%
MPP adaptation efficiency: > 99.9%
Additional Details
Description: Fronius Verto 33.3 Plus SPD 1+2 33.3kW 3 MPPT Hybrid 3 Phase Inverter 4,210,460
Application: Residential and Light Commercial Solar, Off Grid Solar
Chemistry: Lithium Iron Phosphate (LiFePO4)
Voltage: 150 - 1000V
Size: 33.3kW
Width: 574mm
Height: 865mm
Depth: 279mm
Weight: 43kg
