Noark PVBx101-EG

Battery SpecialistsSKU: PVBx101-EG

Price:
$3,467.95
Stock:
Low stock

Description

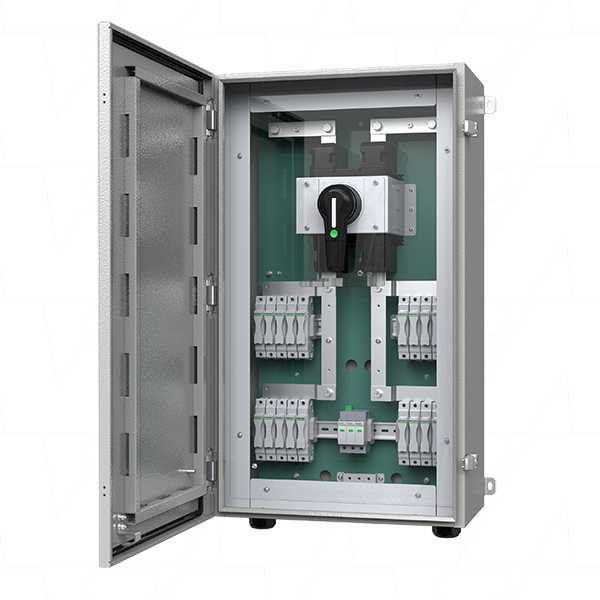

Provides circuit and surge protection between the PV panels and the inverter. With an optional monitoring module, it can track and send data on current, voltage, switch status, and SPD. The information is shown on LED lights and sent through an RS485 cable.



Specifications

Rated op. Voltage Ue: DC 1500V

Rated Insulation Voltage Ui: DC 1500V

Rated Impulse withstand voltage Ui: 12Kv

Earthing: Yes

Surge Protection: SPD PV Type II

Monitoring: No



Enclosure

Material: EG Steel

Thickness: 2mm

Ingress Protection: IP65

Finishing: 80um Epoxy Powder Coating

String Input: Gland or MC4

Mounting: Wall Mount Lugs

Ambient Temperature Range: -25°C to +50°C

Relative Humidity: 0 ~ 90%

Altitude: ≤2000 Metres

Compliance: IEC/EN 61439-2

Technical Documents

Data Sheet.pdf
