VC8S-KIT 1-8 cell LiIon/NiMH battery charger with capacity test function, USB-C PD3.0/QC3.0 capability for fast charging

Battery SpecialistsSKU: VC8S-KIT

Price:
$99.95
Stock:
In stock

Description

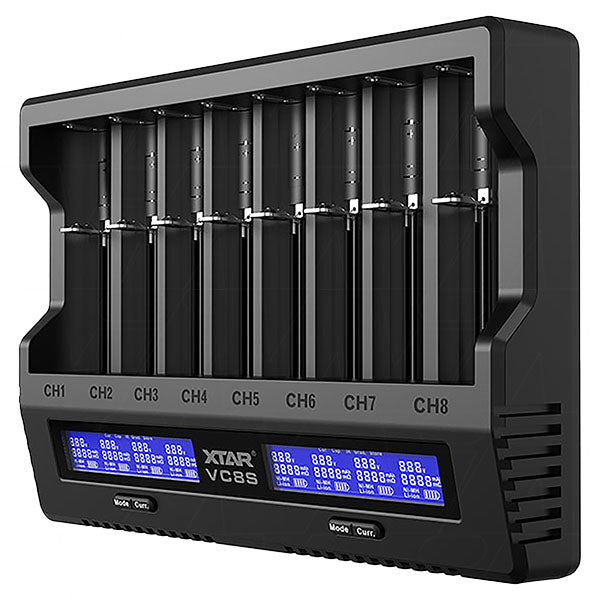

XTAR VC8S LiIon/NiMH battery charger featuring:

  • Charges 1 to 8 cells:
    • 3.6V/3.7V LiIon cells in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650 as well as 20700, 21700
    • 1.2V NiMH cells in sizes AAA, AA, A, SC, C
  • Manually select charging current settings from 0.25A, 0.5A, 1A, 2A or 3A* (available if using a PD45W adaptor, and only for one slot from CH1-CH4 and 1 slot from CH5-CH8).
  • Intelligent optimal charging current selection based on number of batteries, battery internal resistance, battery type and input power.
  • Storage mode to ensure long term battery storage health
  • Grading mode (CH 1-4) tests real battery capacity - Charge-Discharge-Recharge program
  • Higher battery recovery rate with XTAR's newest technology to recover over-discharged batteries to reduce disposal and replacement rates.
  • Easy to Read LCD screen with real time charge status for charge, grading & storing modes
  • Multiple levels of protection
    • Intelligent detection
    • Auto shut off
    • Reverse polarity protection
    • Over charge protection
    • Over current protection
    • Over voltage ptotection
    • Short circuit protection
    • Soft start

Charging Parameters:

  • Input (USB Type-C): PD3.0 15V @ 3A (recommended) and QuickCharge 3.0 5V @ 2.0A, 9V @ 2A
  • Output:
    • 3.0A Constant Current x 2 cell
    • 2.0A Constant Current x 4 cells
    • 1.0A Constant Current x 8 cells
    • 0.5A Constant Current x 8 cells
    • 0.25A Constant Current x 8 cells
  • Cut-off Voltage:
    • LiIon: 4.2V±0.05V
    • NiMH: 1.45V±0.1V
  • Operating temp: 0-40°C

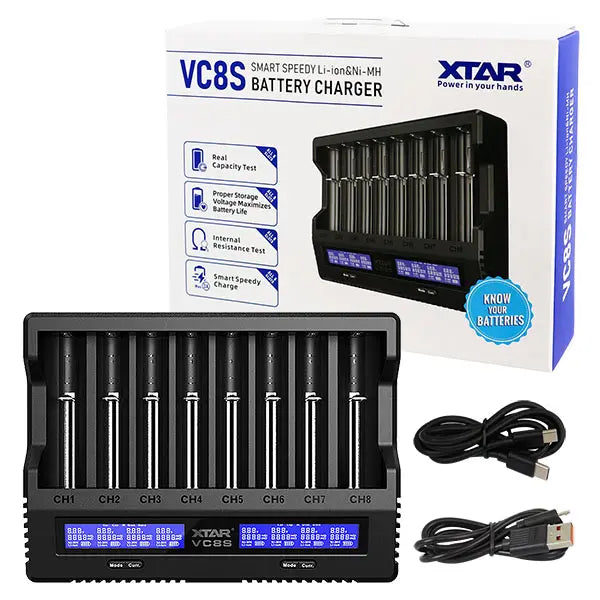

The VC8S comes with:

  • VC8S Charger
  • USB Type-A to USB Type-C Charge Cable
  • USB Type-C to USB Type-C Charge Cable
  • Product Manual
